Letters mark reference corners; numbers mark electrical boards. Distances and heights are in centimetres, measured to the board centre. Bed outer sizes and mattress sizes are listed separately.
Proposed model dimensions, not surveyed construction drawings. An electrician must confirm positions on site before cutting. Equipment connection reservations are not approved sockets, wiring routes or installation marks; concealed locations need designed service access.
Print the PDF on A3 for the intended text size. Do not measure distances from the printed image. The former utility sheet is historical footprint context, not a separate enclosed room in the current kitchen.

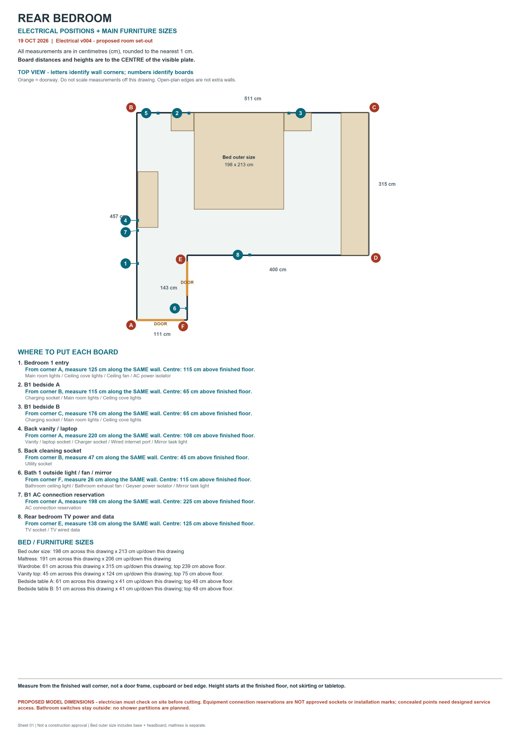

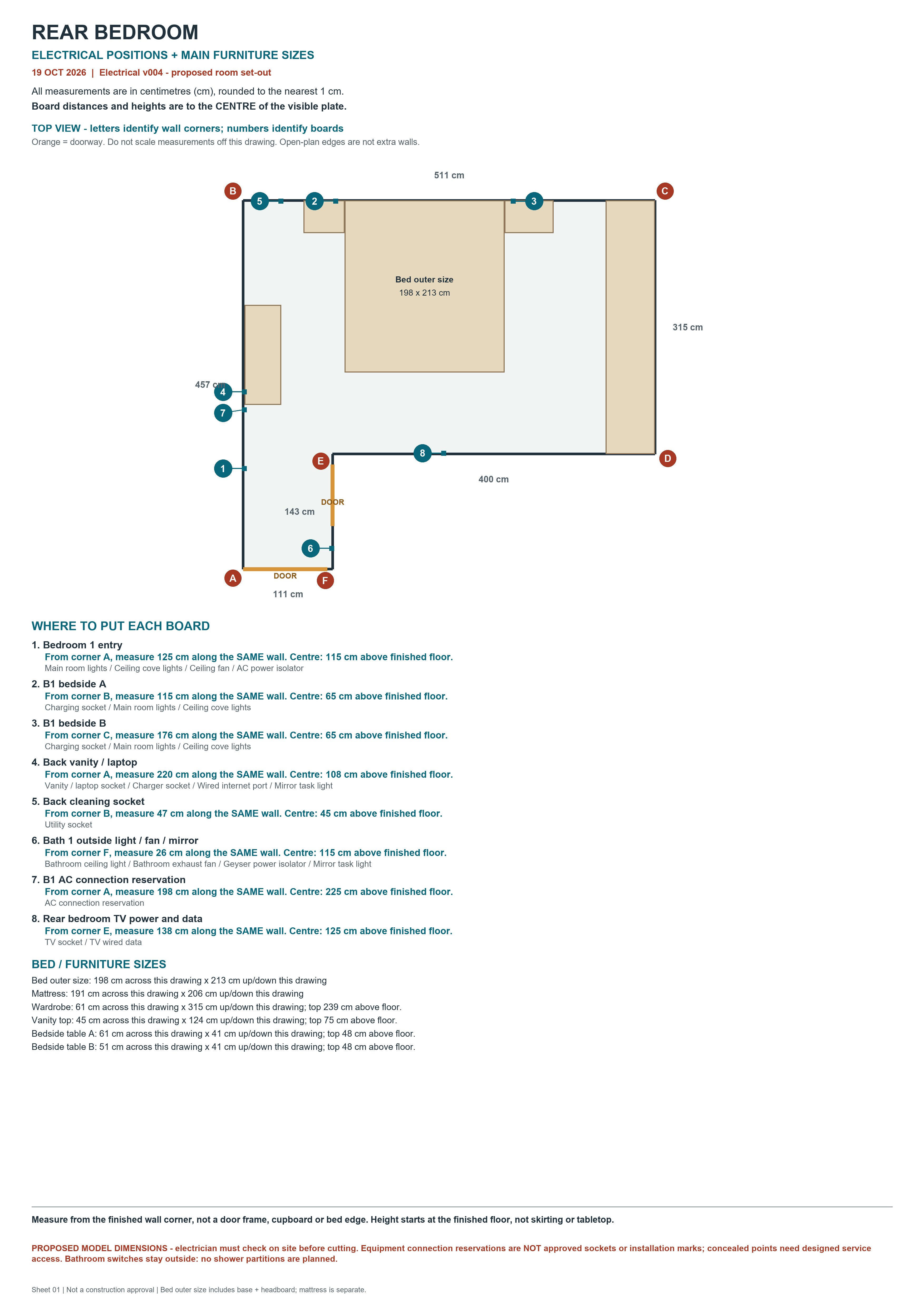

Rear bedroom

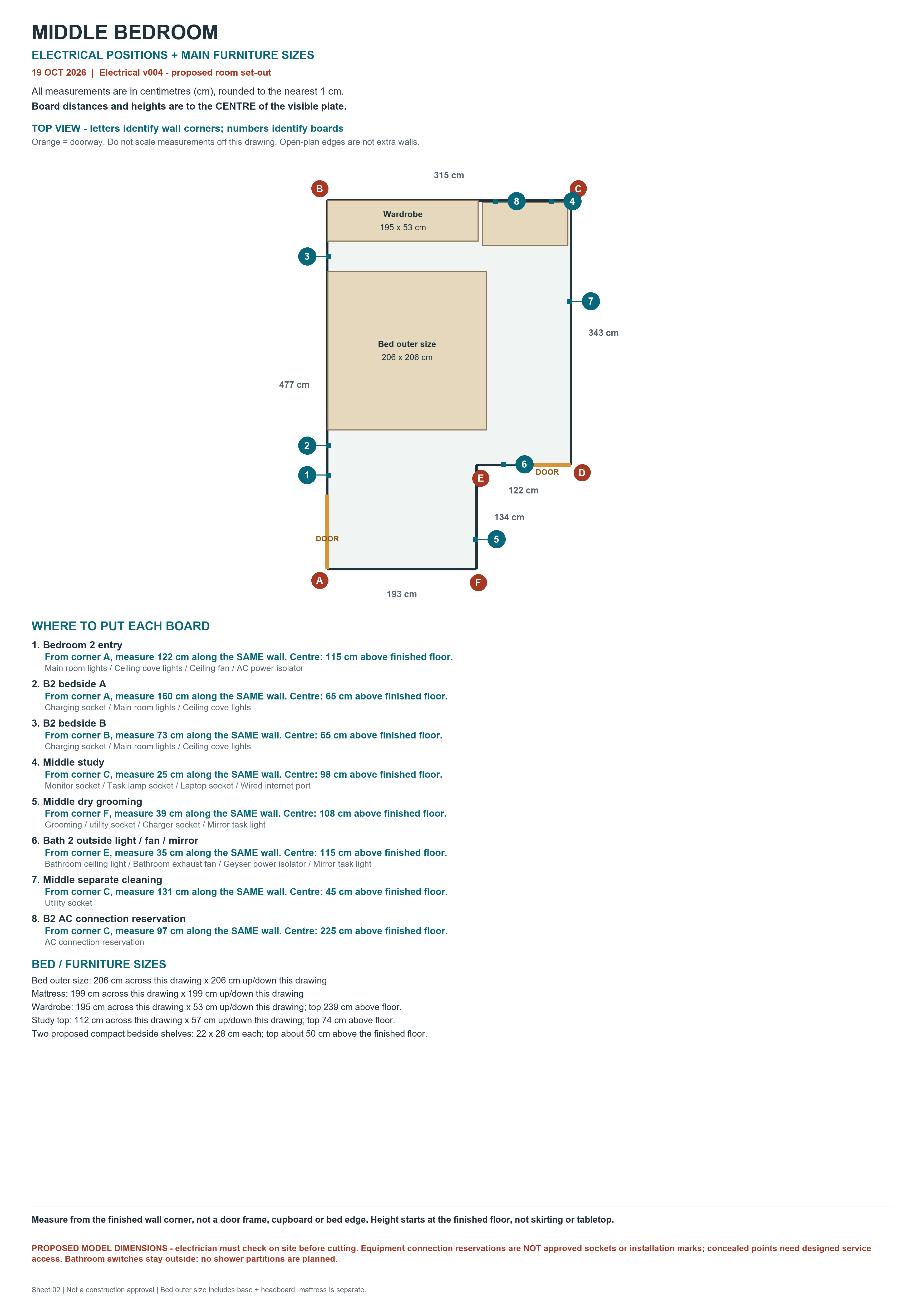

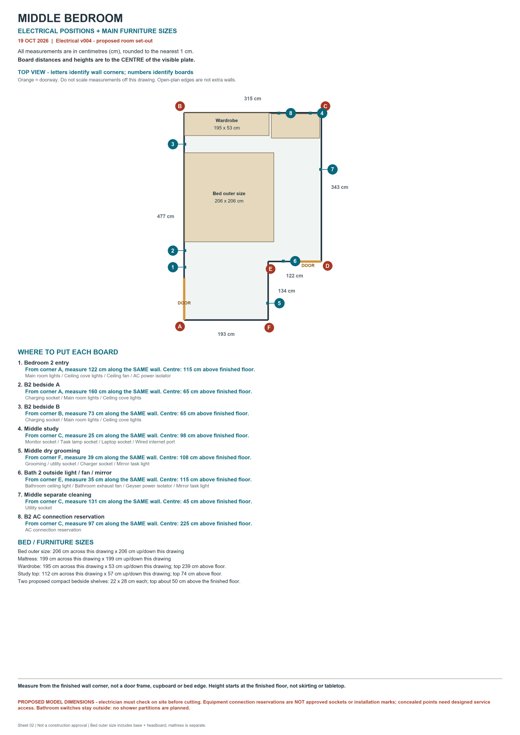

Middle bedroom

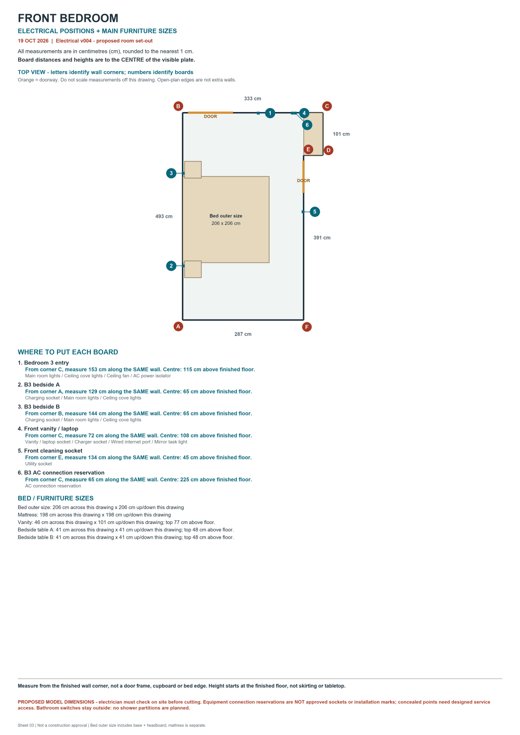

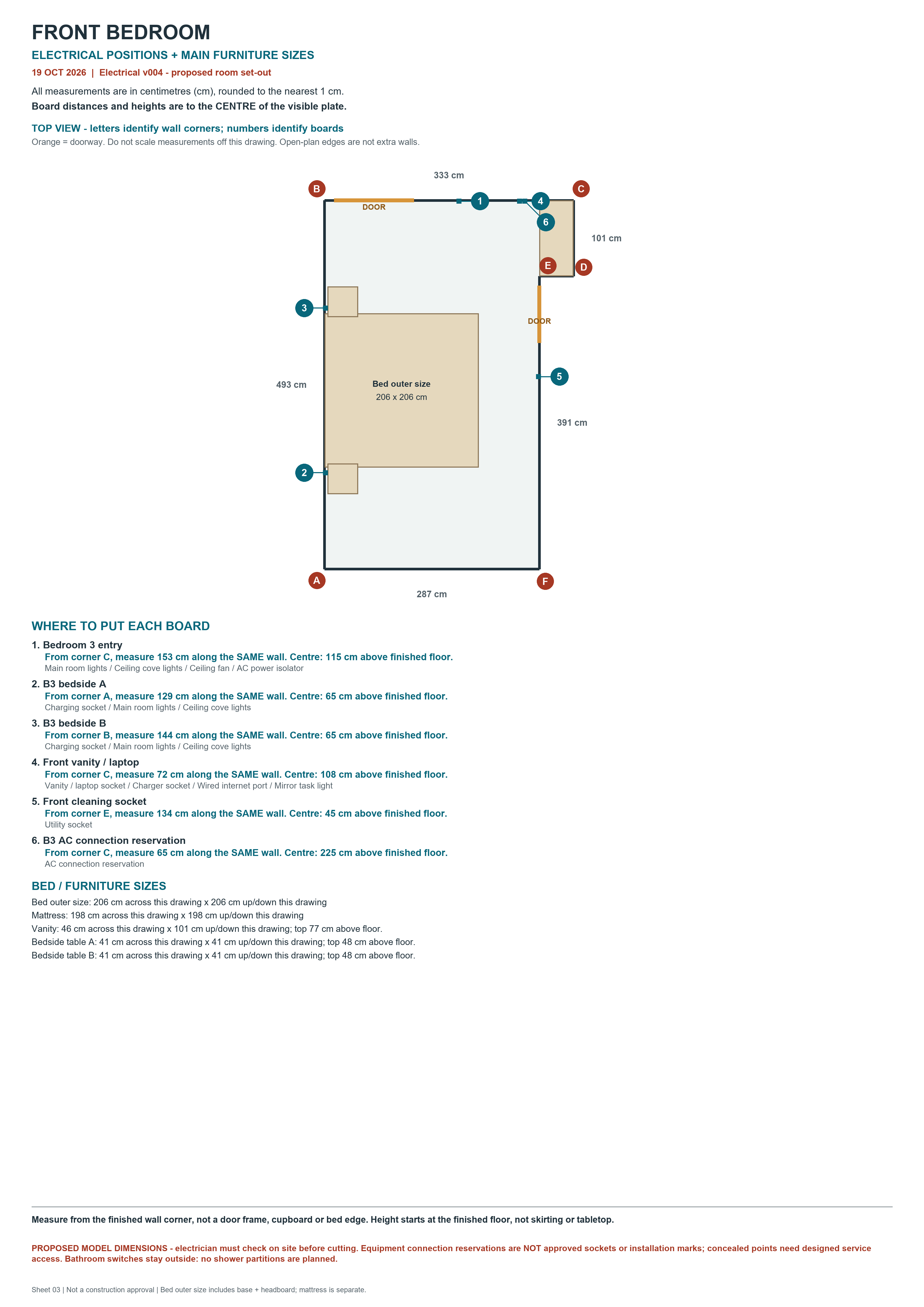

Front bedroom

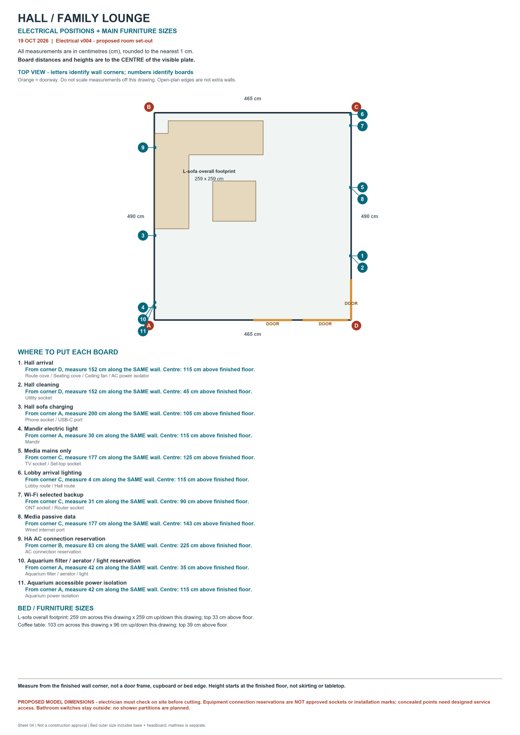

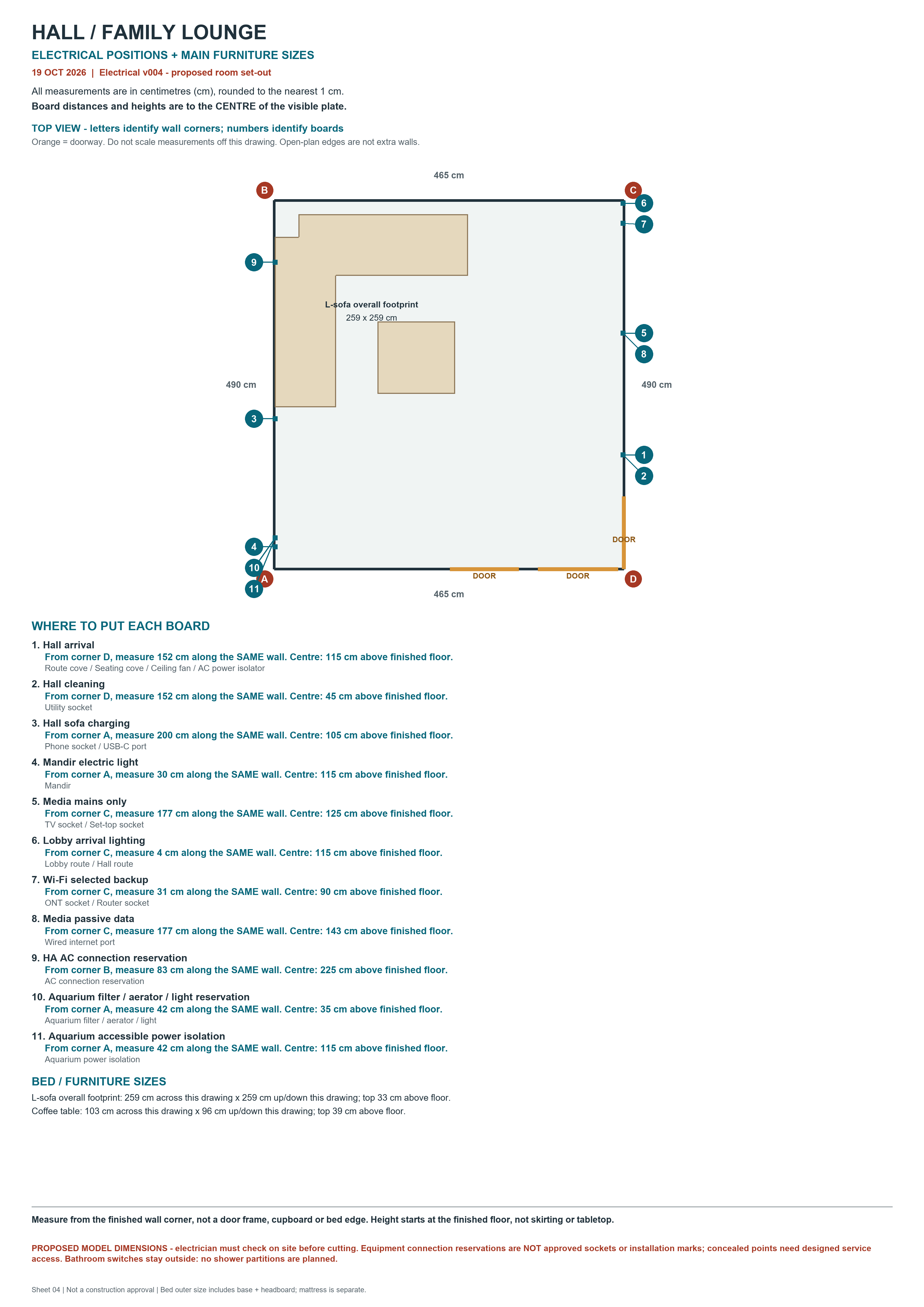

Hall / family lounge

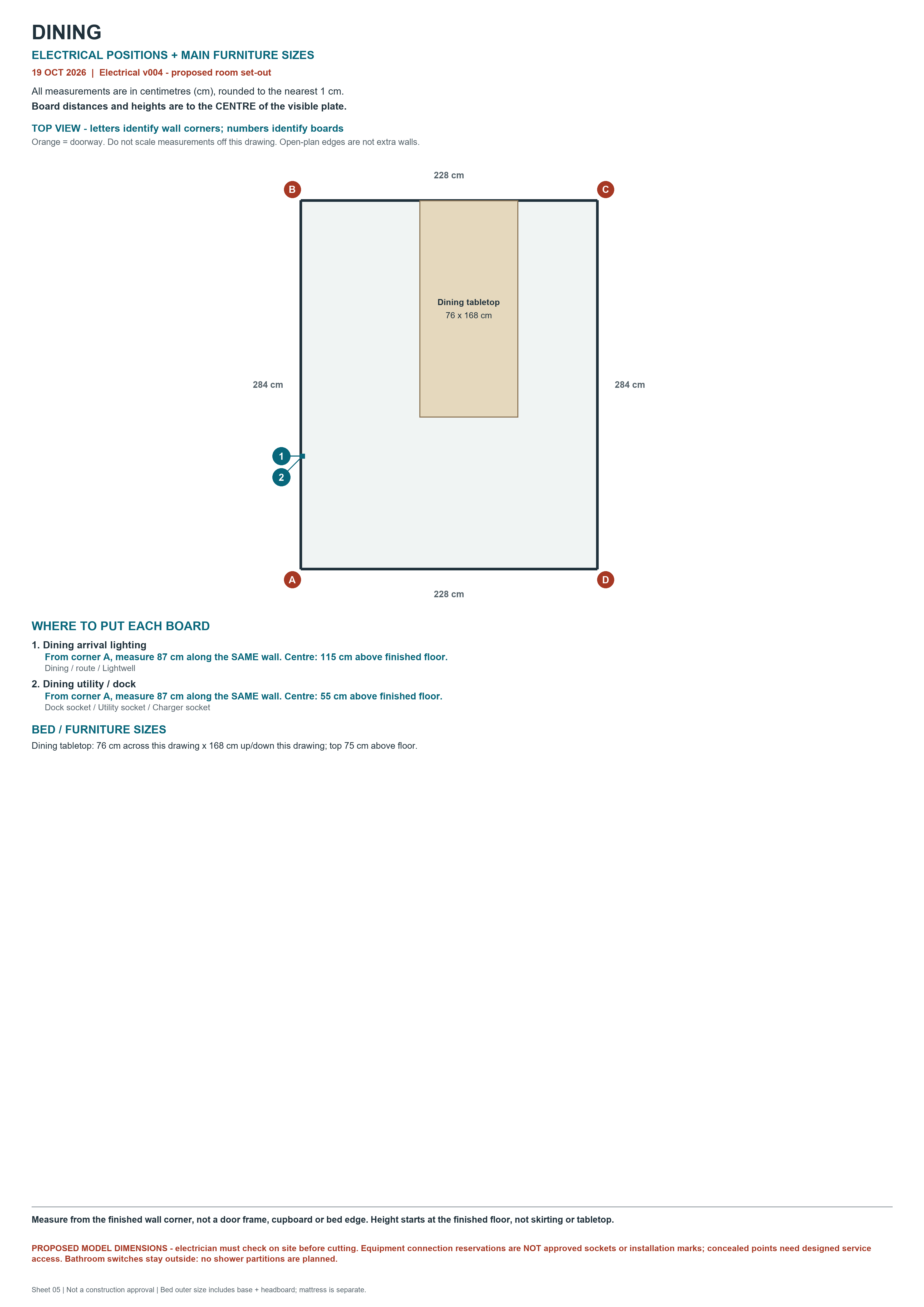

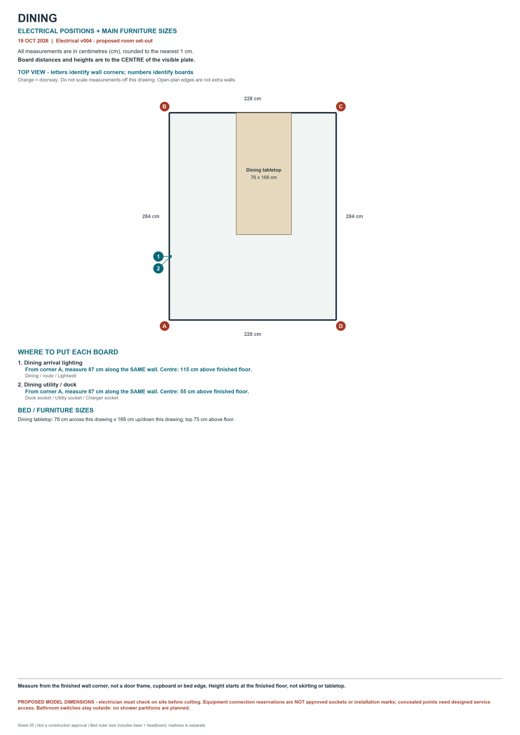

Dining

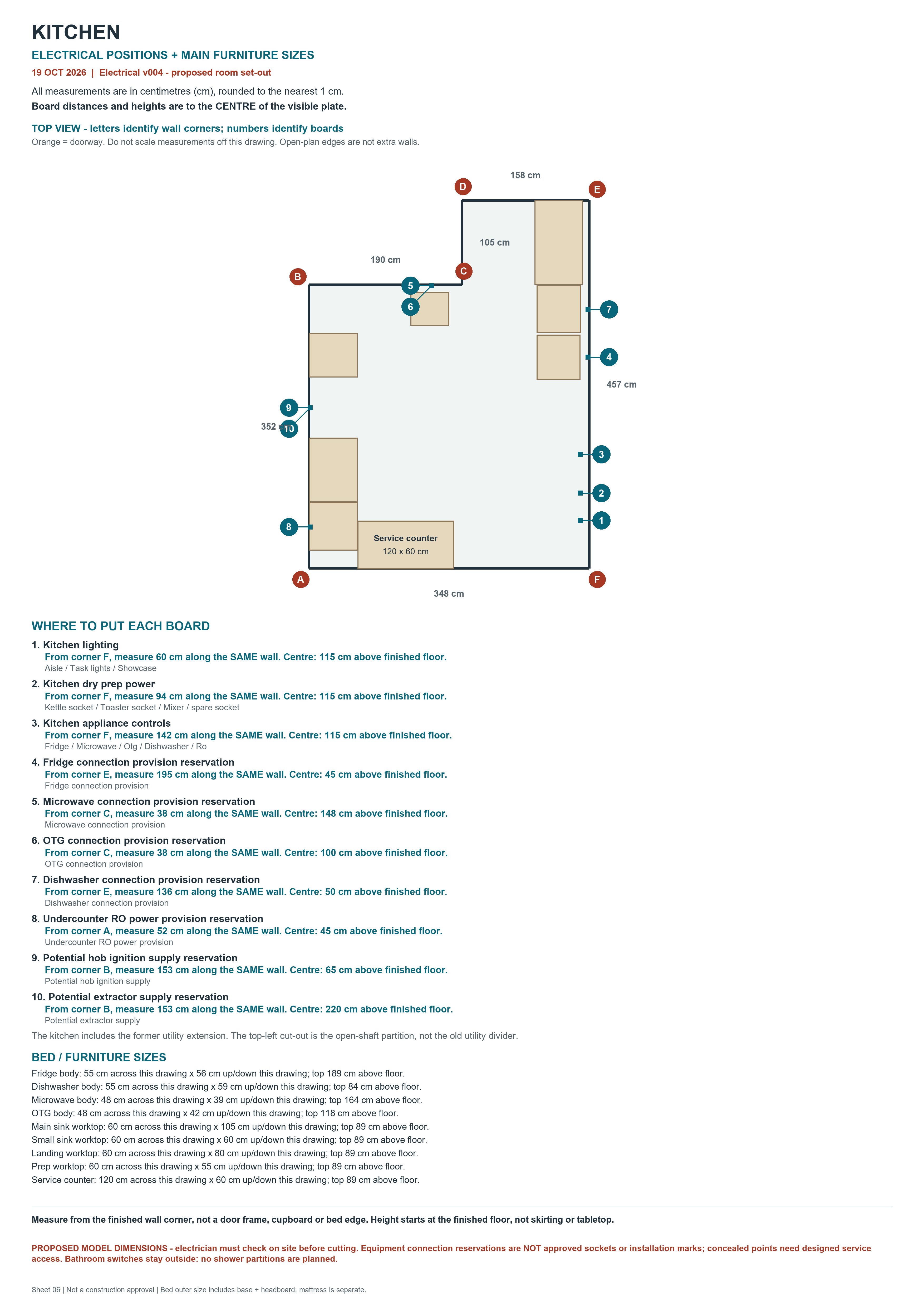

Kitchen

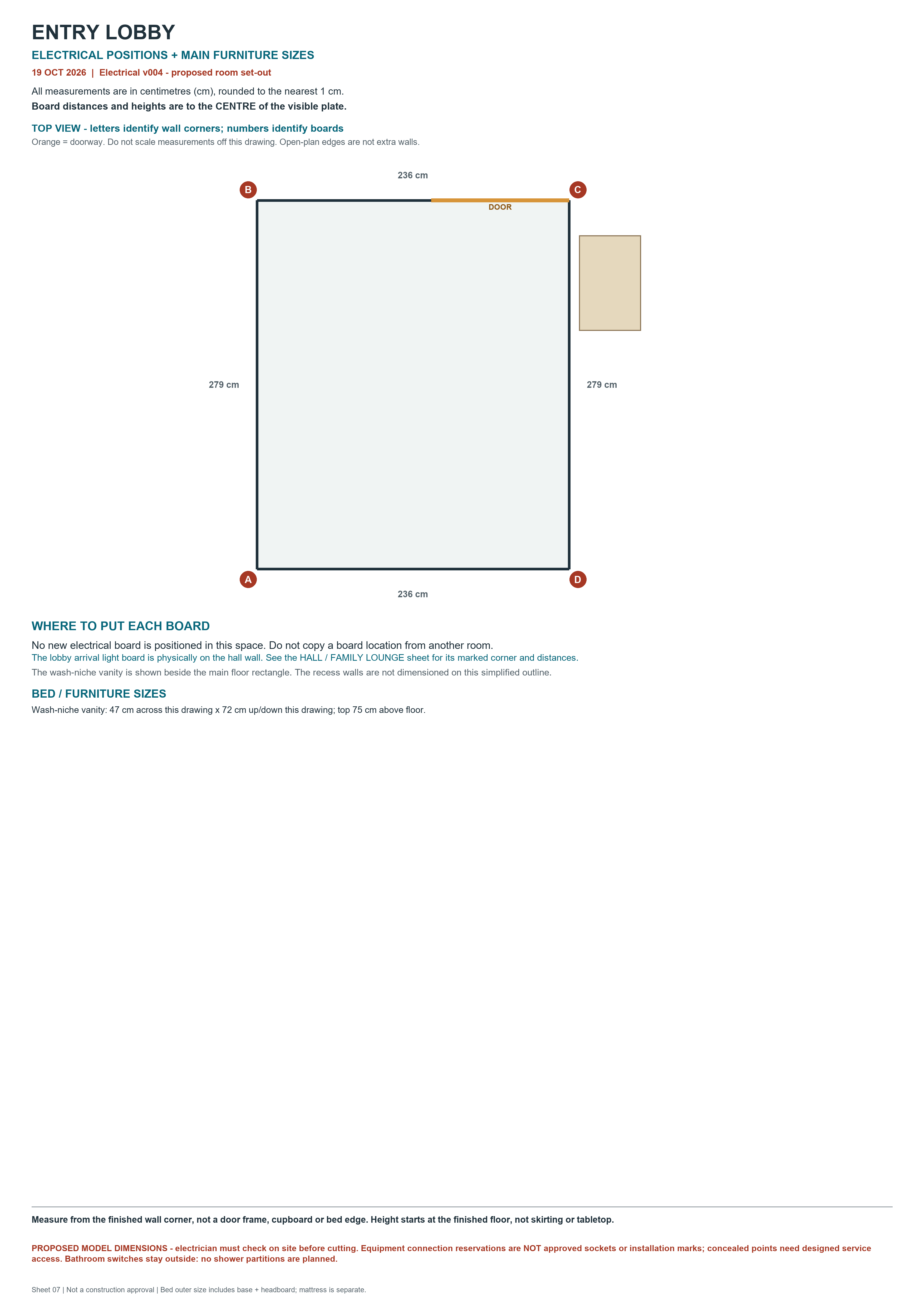

Entry lobby

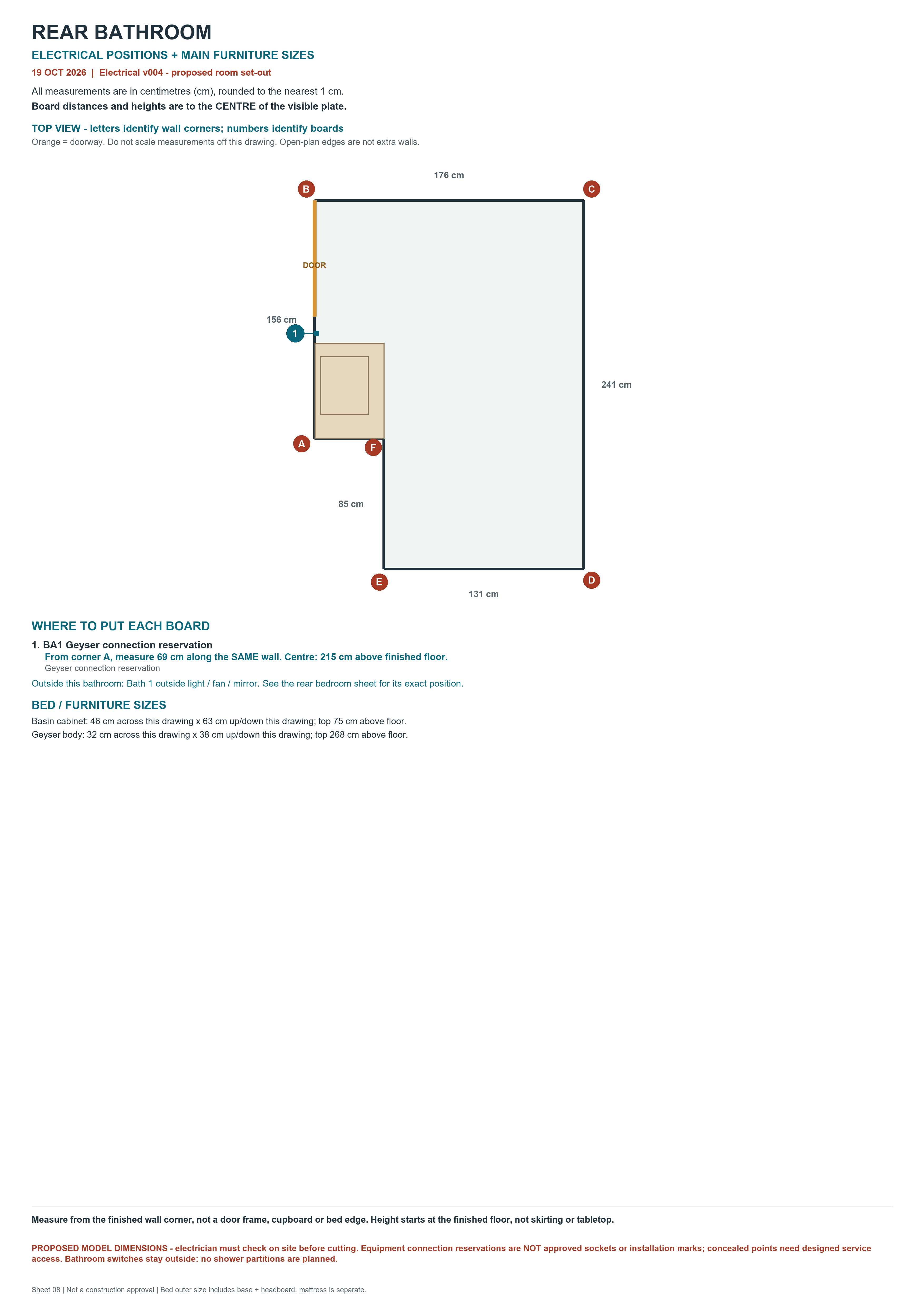

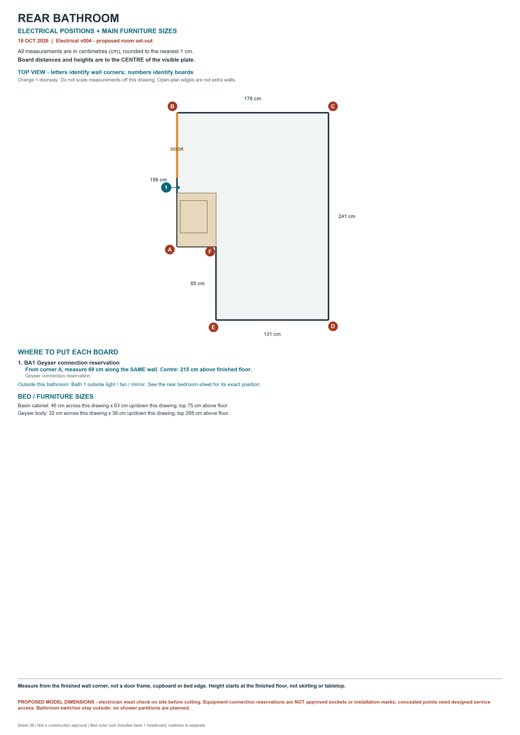

Rear bathroom

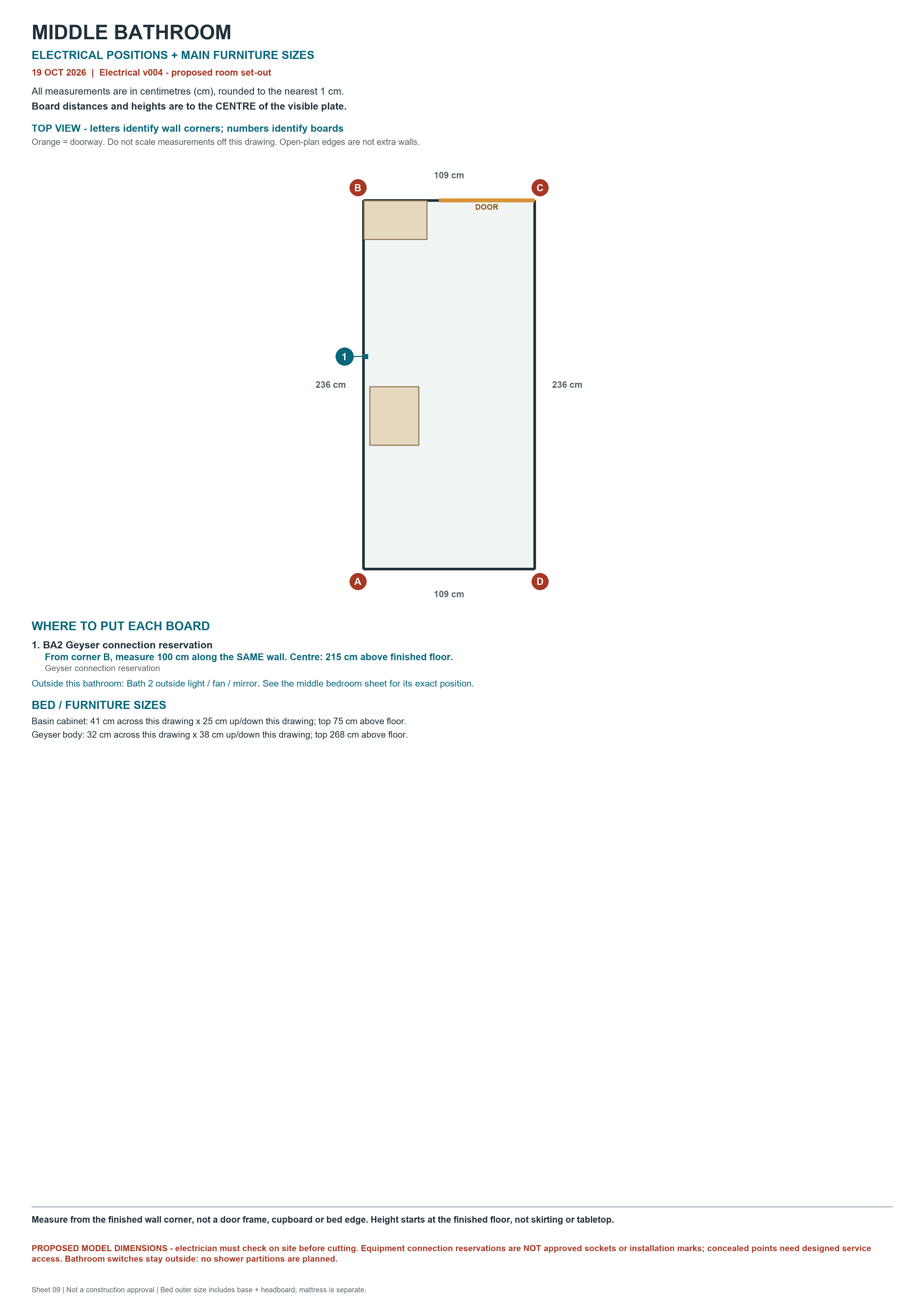

Middle bathroom

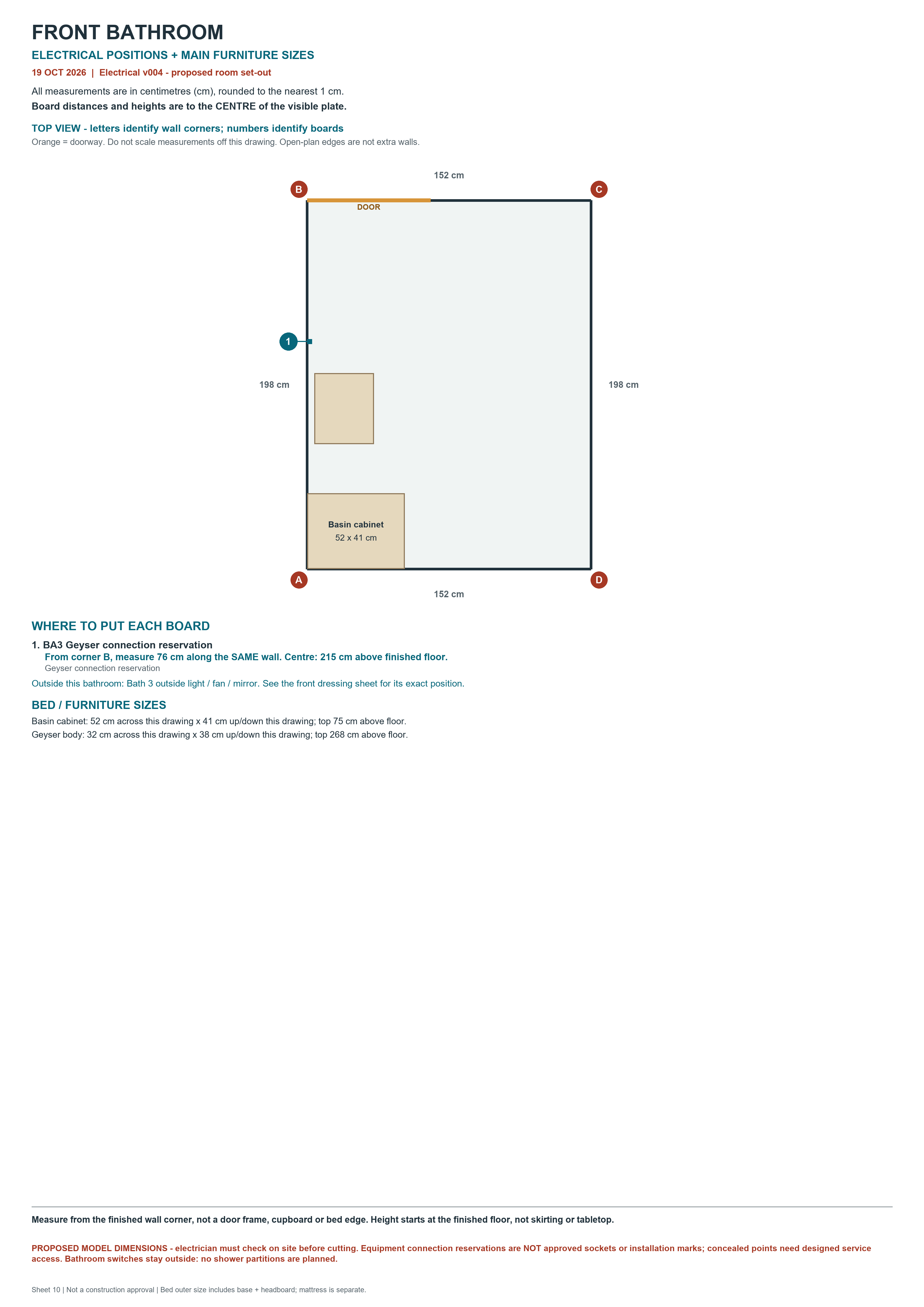

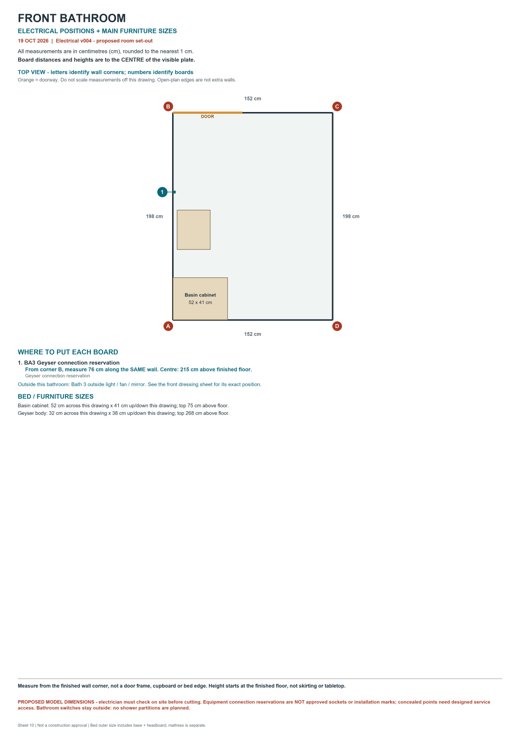

Front bathroom

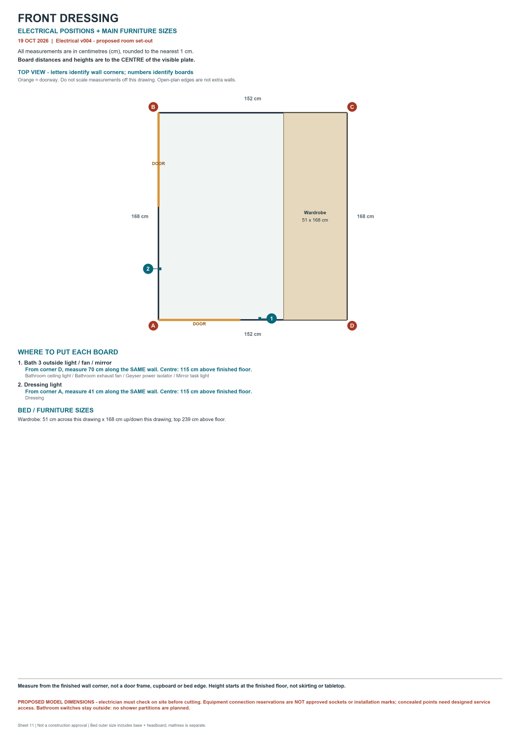

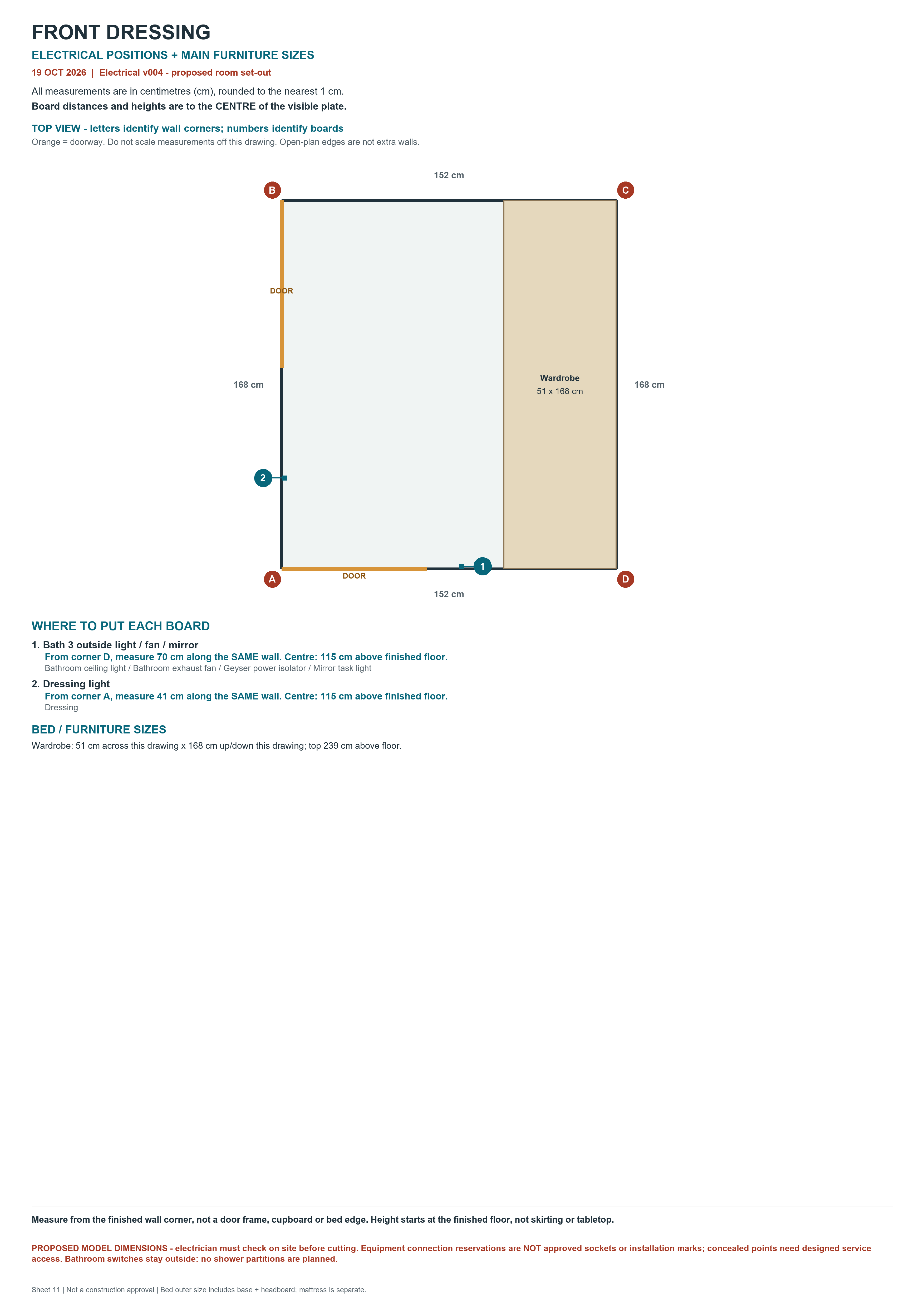

Front dressing

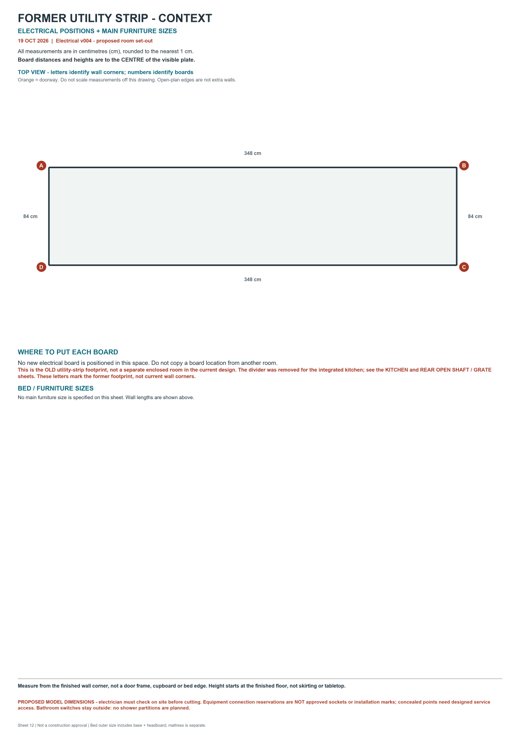

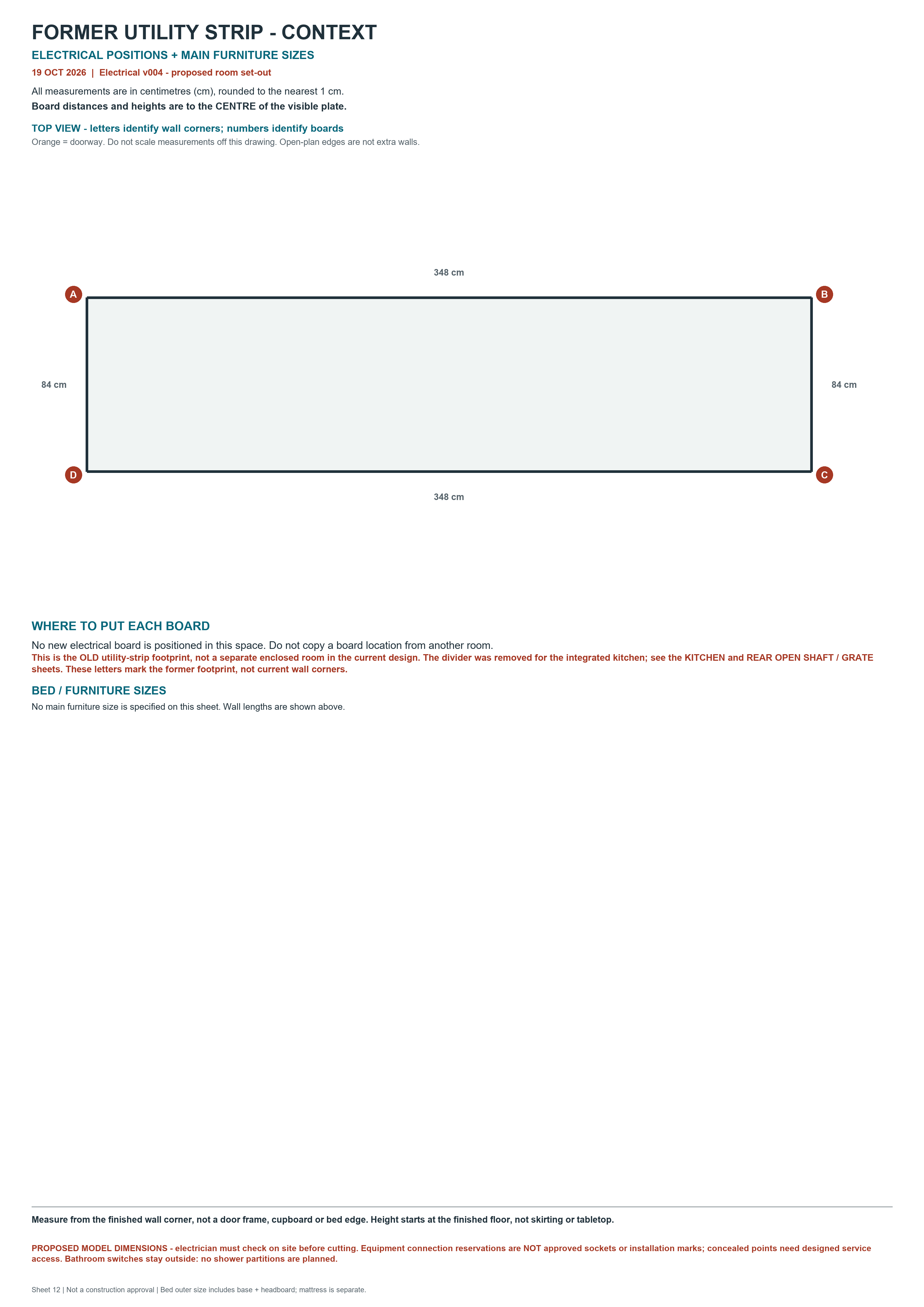

Former utility strip (context)

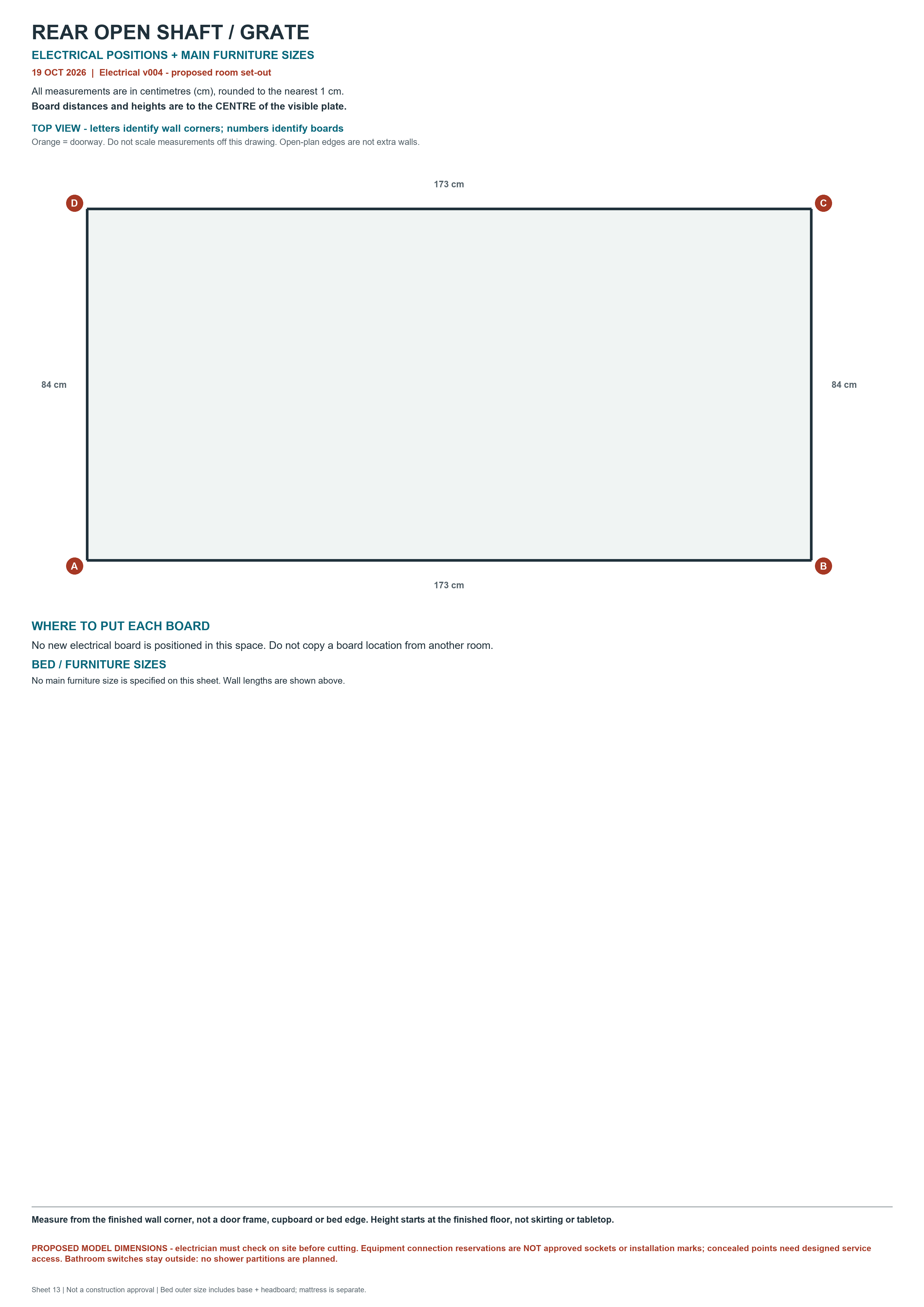

Rear open shaft / grate

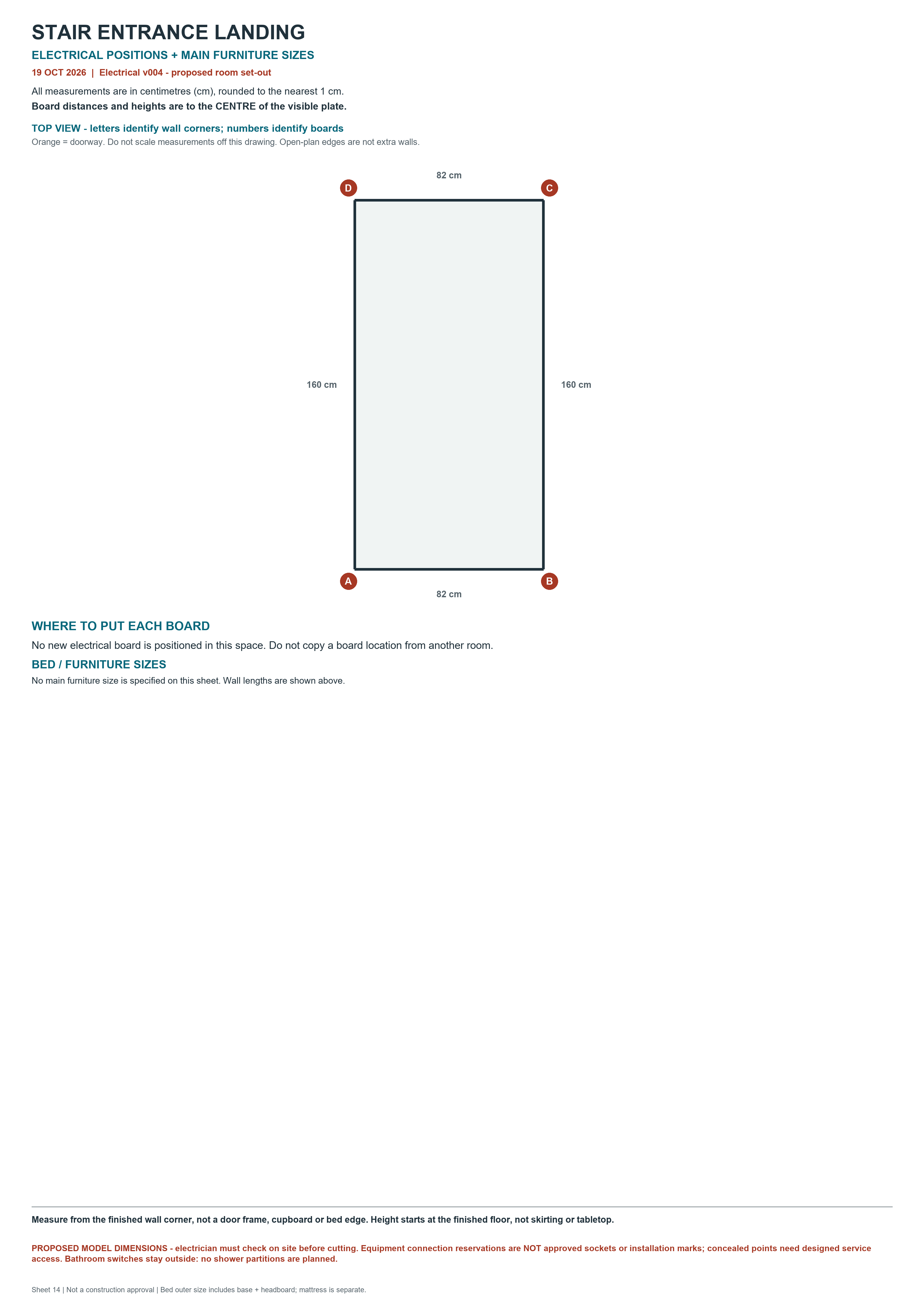

Stair entrance landing
