Intermediate landing study

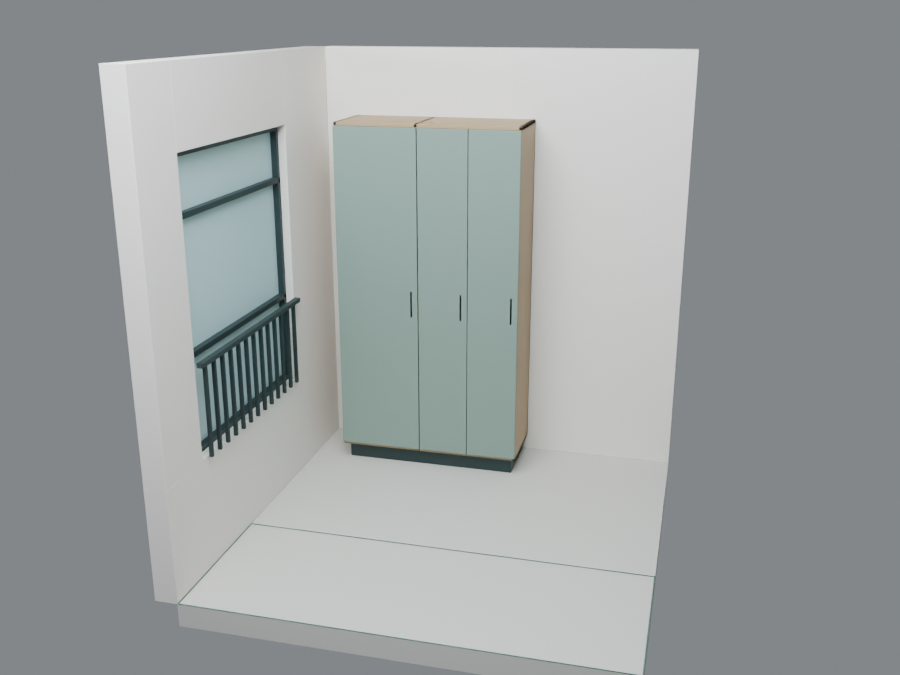

Proposed sage dry-storage bays and replacement left window on the intermediate landing; the right-hand area stays free.

Loading the independent landing model...

No flights are modeled. Front and right context walls are omitted for inspection, not proposed for demolition.

Measured, not guessed

Intermediate landing: 2200 × 2200 mm
Stair width: 820 mm
Entrance landing: 800 × 800 mm

The entrance landing is 20 mm narrower than the stair width. These are separate user measurements, not corrected to match.

Ground floor → this landing → a turn → the user's floor. Heights, step counts and flight directions remain unmeasured; this study is not connected to the house model.

Dry storage, not equipment storage

Folded ladder: 500 mm nominal bay, approximately 460 W × 410 D × 1960 H mm clear inside. The folded ladder and its insertion/tilting envelope must be measured before joinery. General storage: 600 mm nominal bay. The right-hand area stays free and unassigned.

No inverter or battery is proposed here. Equipment location is deferred to rooftop-solar and electrical planning. This dry-storage-only study remains provisional while that decision is made. No equipment bay, wiring or roof geometry is modeled.

Window & clearance

Replacement glazing, separate fixed lower protection and a closed upper vent concept. Opening dimensions and left-wall orientation are provisional. Glass is not claimed to be a certified guard.

Storage envelope: 1100 W × 450 D × 2100 H mm. Closed clearance: 1750 mm; maximum 500 mm door projection leaves 1250 mm to the front edge. The marked 820 mm strip is a design reservation, not a surveyed approach or code approval.

Dimensioned plan and separate references

Open full-size plan 2200 mm square landing plan with 1100 by 450 mm dry storage, open-door envelope, 820 mm reserved strip, and separate 800 mm entrance landing and 820 mm stair-width references.

2200 mm square landing plan with 1100 by 450 mm dry storage, open-door envelope, 820 mm reserved strip, and separate 800 mm entrance landing and 820 mm stair-width references.
